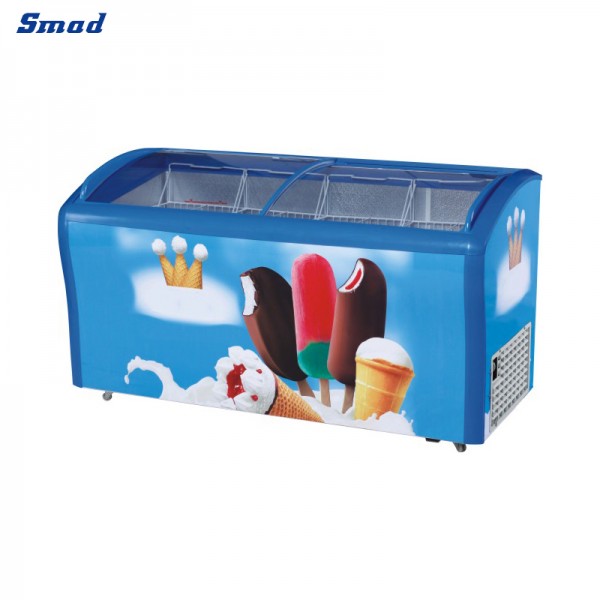

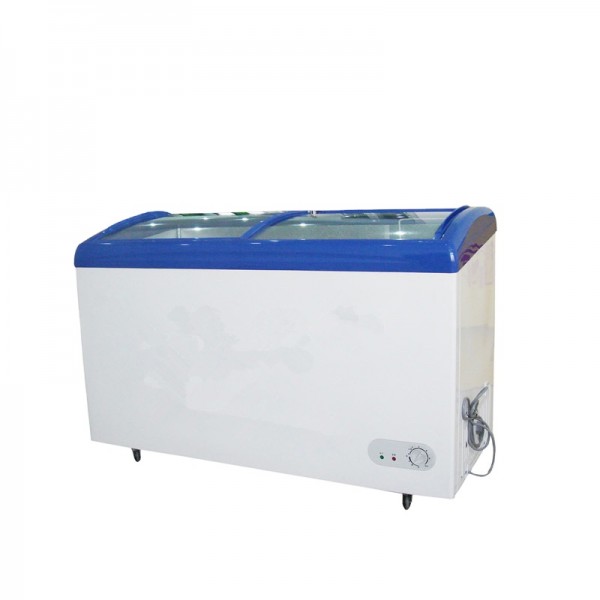

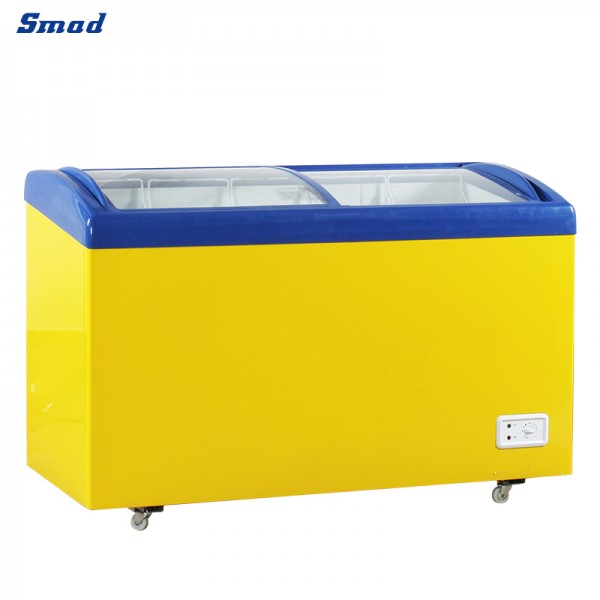

Commercial Dual Curved Sliding Glass Door Chest Display Refrigerator Freezer
Product Code: EQ-2155
-
ETL US
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.
-
ETL Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Commercial Dual Curved Sliding Glass Door Chest Display Refrigerator Freezer
Product Description
Features:
1.Cabinet Top Frame: IntegratedInjection Plastic
2. Lock: Yes
3. Thermometer: Optional
4. Wheel: 43mm Diameter, High Reliability
5. Basket: 2 or 1
Product Details

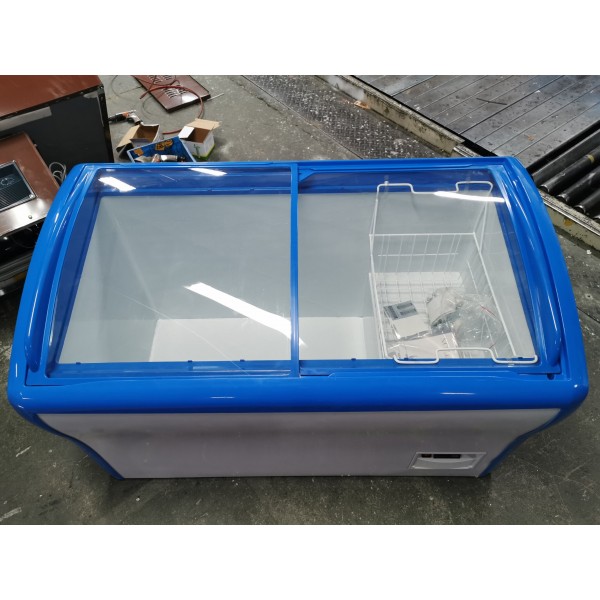

*Transparent curved glass door and basket
*Optional paper sticker
*Several capacity (liters) for your choice
Previous Order Photos
Product Paramenters
Model | DDH-158P | DDH-268P | DDH-328P | DDH-388P |
Refrigerant | R134a | R134a | R134a | R134a |
Capacity | ||||
Gross Capacity | 158L | 268L | 328L | 388L |
Dimension | ||||
Product Dimension(L*W*H) | 610X700X845mm | 1094X598X840mm | 1294X598X840mm | 1260X700X850mm |
Packing Dimension(L*W*H) | 660X765X875mm | 1175X670X875mm | 1365X670X875mm | 1315X765X875mm |
Weight | ||||
N.W./G.W.(kg) | 38/45 | 48/53 | 54/60 | 63/72 |
Feature | ||||
Cabinet Top Frame | Integrated Injection Plastic | Integrated Injection Plastic | Integrated Injection Plastic | Integrated Injection Plastic |
Lock | Yes | Yes | Yes | Yes |
Thermometer | Optional | Optional | Optional | Optional |
Wheel | 43mm Diameter, High Reliability | 43mm Diameter, High Reliability | 43mm Diameter, High Reliability | 43mm Diameter, High Reliability |
Basket | 2 | 1 | 1 | 1 |
Accessory | ||||
Defrost Scraper | 1 / ABS | 1 / ABS | 1 / ABS | 1 / ABS |
Drainage Tray | 1 / Plastic | 1 / Plastic | 1 / Plastic | 1 / Plastic |
Performance | ||||
Test Condition | 38oC, 70%RH | 38oC, 70%RH | 38oC, 70%RH | 38oC, 70%RH |
Test Result | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest |
Ambient Temperature (Class) | N/ST/T | N/ST/T | N/ST/T | N/ST/T |
Structure | ||||
Isolation Thickness | 65mm | 65mm | 65mm | 70mm |
Cabinet | ||||
Cabinet Shell | Cold Steel | Cold Steel | Cold Steel | Cold Steel |
Cabinet Liner | White coating | White coating | White coating | White coating |
Lid Frame | ABS Grey | ABS, Bule , Red | ABS, Blue,White | ABS, Blue |
Glass Thickness | 4mm | 4mm | 4mm | 4mm |
System | ||||
Compressor | Qianjiang or Donper | Qianjiang or Donper | Qianjiang or Donper | Qianjiang or Donper |
Evaporator | Tube Coil | Tube Coil | Tube Coil | Tube Coil |
Material | Zinc plated Steel | Zinc plated Steel | Zinc Plated Steel | Zinc Plated Steel |

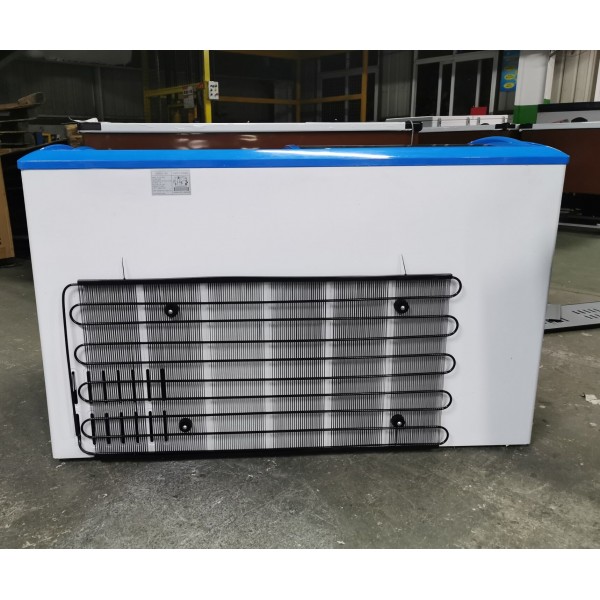

Condenser | Tube Coil | Tube Coil | Tube Coil | Tube Coil |
Tube Coil | Steel | Steel | Steel | Steel |
Loading Quantity(40'HQ) | 153pcs without wheels fixed | 106pcs without wheels fixed | 78pcs without wheel fixed | 80pcs(without wheels) |
Product Shipping&packaging
Shipping Terms and Loading Details
**Strong Export Brown Carton one piece per unit, cystosepiment inside and strong belt outside to strengthening the products.
** As for sample, will use wooden box besides above shipping terms.
Company Profile
Our Service
1. Do the brand, logo, plug and the printing artwork as your requirements.
2. We offer 1 years for the whole unit and 3 years for main part.
3. For the exporting products, 1% vulnerable spare parts will be supplied for free.
4. OEM service is available.
5. We offer customers to visit the factory pick-up service.
6. We can help customers to book hotels.
7. More products, please visit our website, www.Wowcooler.com.cn.
2. We offer 1 years for the whole unit and 3 years for main part.
3. For the exporting products, 1% vulnerable spare parts will be supplied for free.
4. OEM service is available.
5. We offer customers to visit the factory pick-up service.
6. We can help customers to book hotels.
7. More products, please visit our website, www.Wowcooler.com.cn.
FAQ
Q:Can you provide samples?
A: Yes,sample order is avialable.
Q:MOQ?
A: Normally 1*40HQ,some models can be tried from small quantity.
Q:How long your delivery?
A: According to your order,generally 45 workdays after confirming all the printing materials.
Q:Do you accept OEM orders?
A:Yes
Q: What are your payment terms?
A: We accept T/T, L/C and other negotiable payment terms.
Q: Do you have any warranty?
A: We offer 1 years for the whole unit and 3 years for main parts. Enough vulnerable spare parts will be deliveried with goods
together.
Q:Can you make the printing artworks(such as user manual/packing/rating label) in our language?
A:Yes we can.
A: Yes,sample order is avialable.
Q:MOQ?
A: Normally 1*40HQ,some models can be tried from small quantity.
Q:How long your delivery?
A: According to your order,generally 45 workdays after confirming all the printing materials.
Q:Do you accept OEM orders?
A:Yes
Q: What are your payment terms?
A: We accept T/T, L/C and other negotiable payment terms.
Q: Do you have any warranty?
A: We offer 1 years for the whole unit and 3 years for main parts. Enough vulnerable spare parts will be deliveried with goods
together.
Q:Can you make the printing artworks(such as user manual/packing/rating label) in our language?
A:Yes we can.
| Quick Details | |
| After-sales Service Provided | Free spare parts, Field maintenance and repair service |
| Application | Hotel, Garage, RV, Commercial, Household |
| Condition | New |
| Defrost Type | Manual Defrost |
| Dimensions (L x W x H (Inches) | 1294X598X840 mm |
| Door No. | Double Doors |
| Feature | COMPRESSOR |
| Installation | PORTABLE |
| Material | Stainless Steel |
| Place of Origin | Zhejiang, China |
| Power Source | Electric |
| Product name","attrValue":"Horizontal Ice Cream Display Freezer" | EMC, CB, ce, GS |
| Temperature Type | Single-Temperature |
| Voltage (V) | 220-240V |
| Specifications for this item | |
| Door Type | Sliding Door |
| Type | Chest / Deep Freezer |
| Brand Name | Smad or OEM |
| Capacity | 20000 pieces per week |
| Warranty | 3 years |
